Download timing cover gasket dwg for CNC cutting
Download timing cover gasket pdf for desktop printing and manual cutting

Download timing cover intermediate plate gasket dwg for CNC cutting
Download timing cover intermediate plate gasket pdf for desktop printing and manual cutting

To request other file formats please send an email to saabv4[at]saabv4[dot]com.

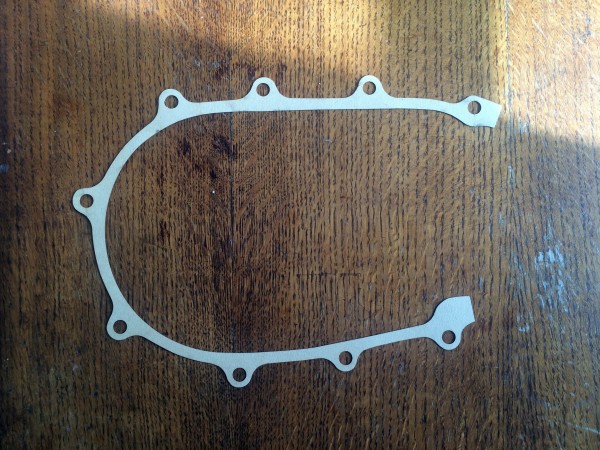

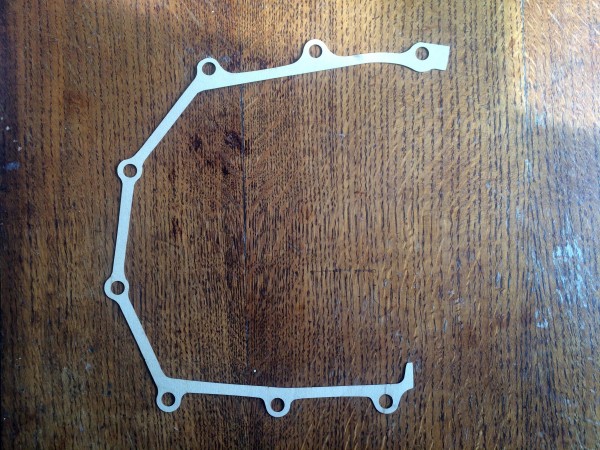

Timing cover and intermediate plate gaskets can be cut from 0.5–1mm gasket paper or similar (cereal/ pizza box or manila folder and a smear of your favourite grease both sides) with a laser cutter or an oscillating knife.
